Drawings
Updated September 16, 2002

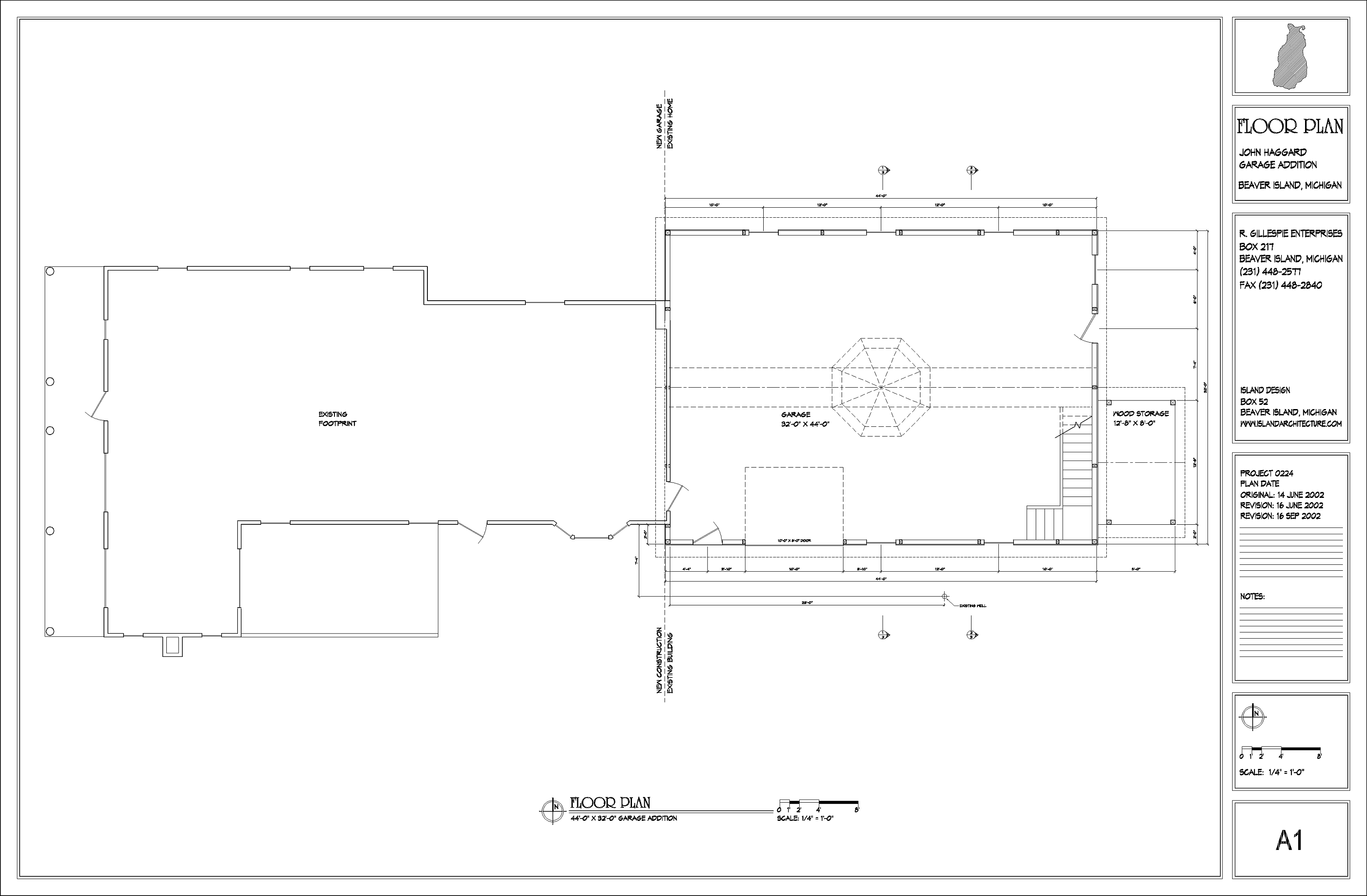

A1 - Floor Plan

Floor Plan DWF File
Floor Plan GIF Image File

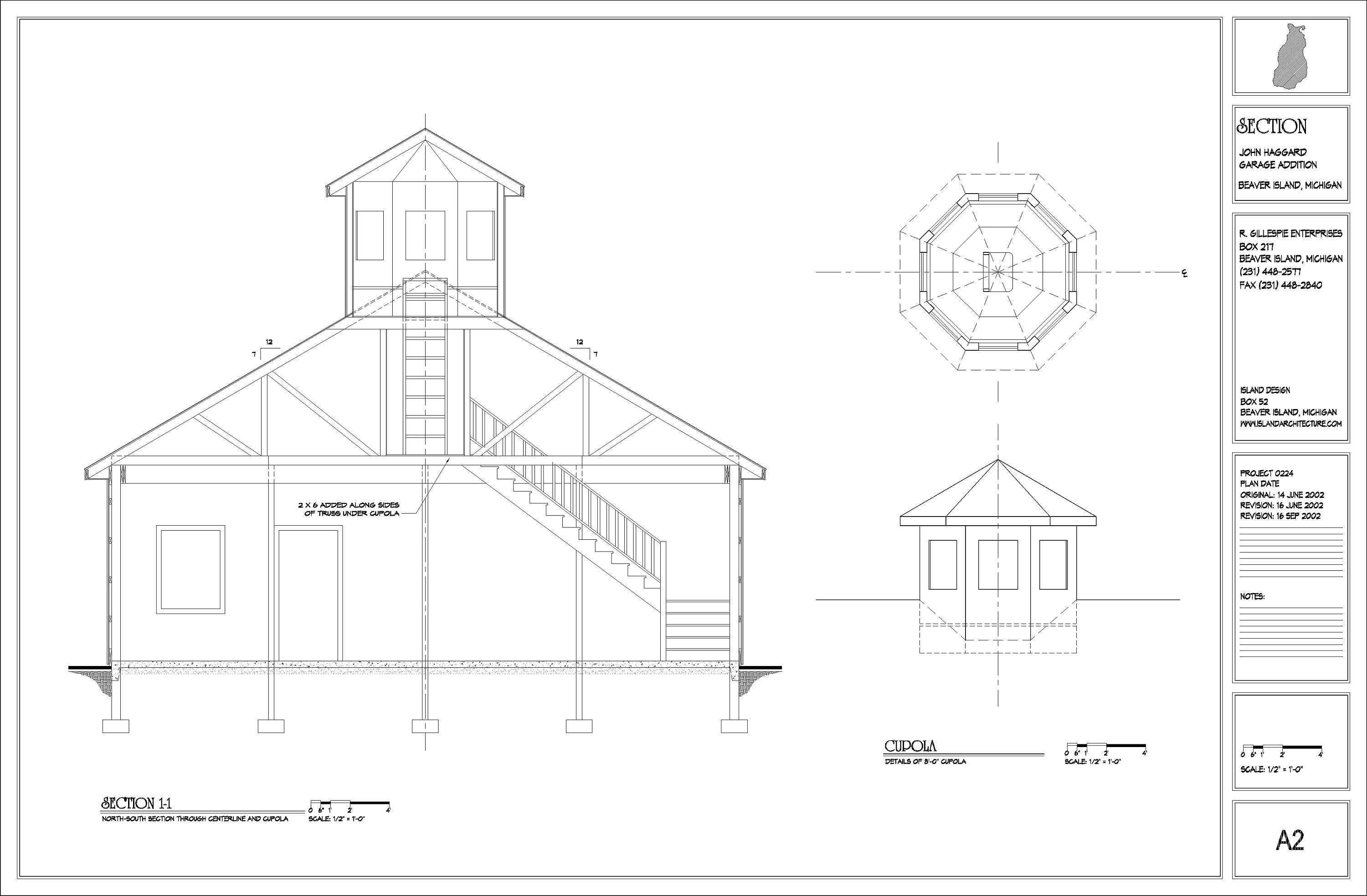

A2 - Section 1-1

Section 1-1 DWF File
Section 1-1 GIF Image File

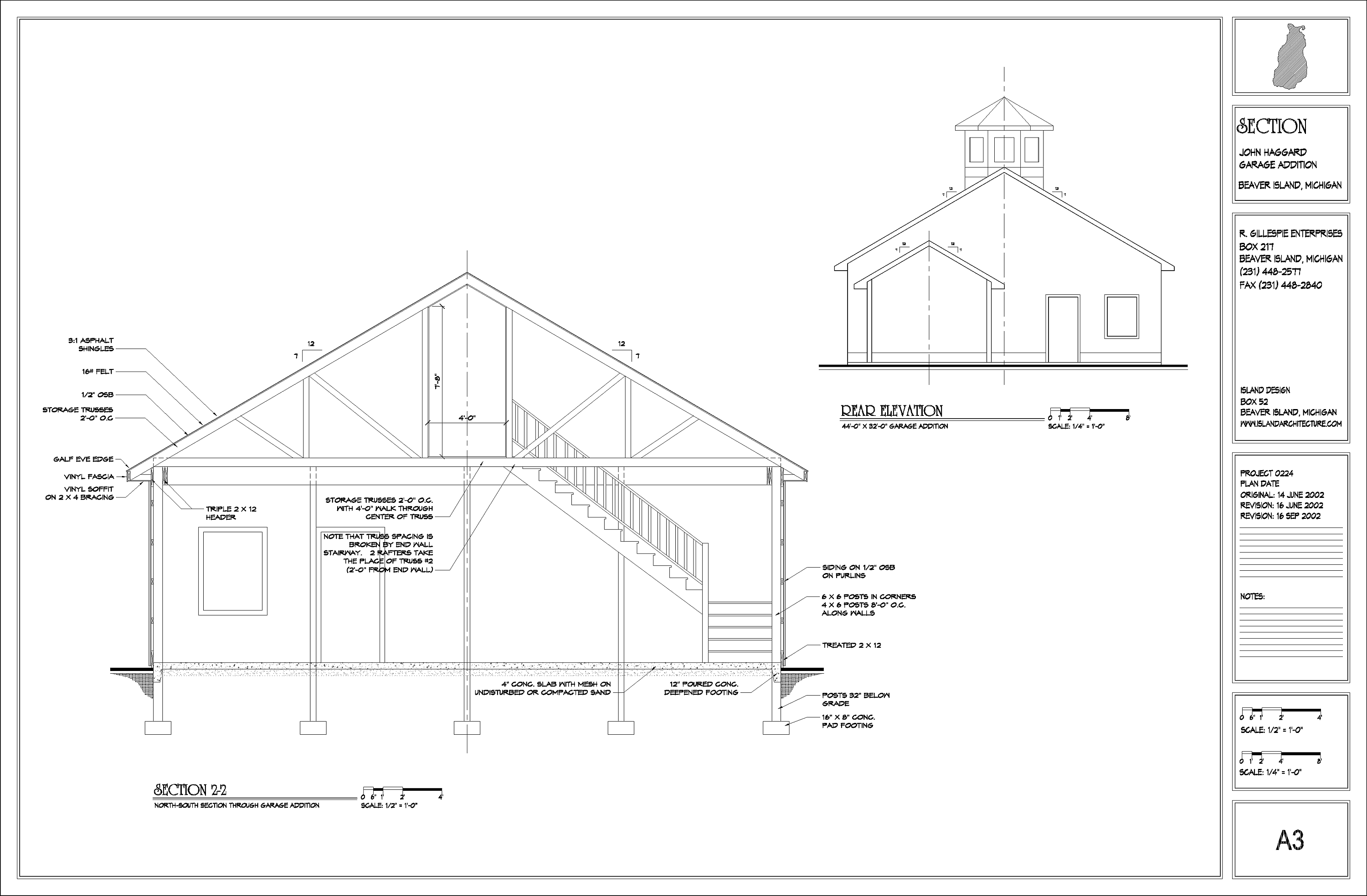

A3 - Section 2-2

Section 1-1 DWF File
Section 1-1 GIF Image File

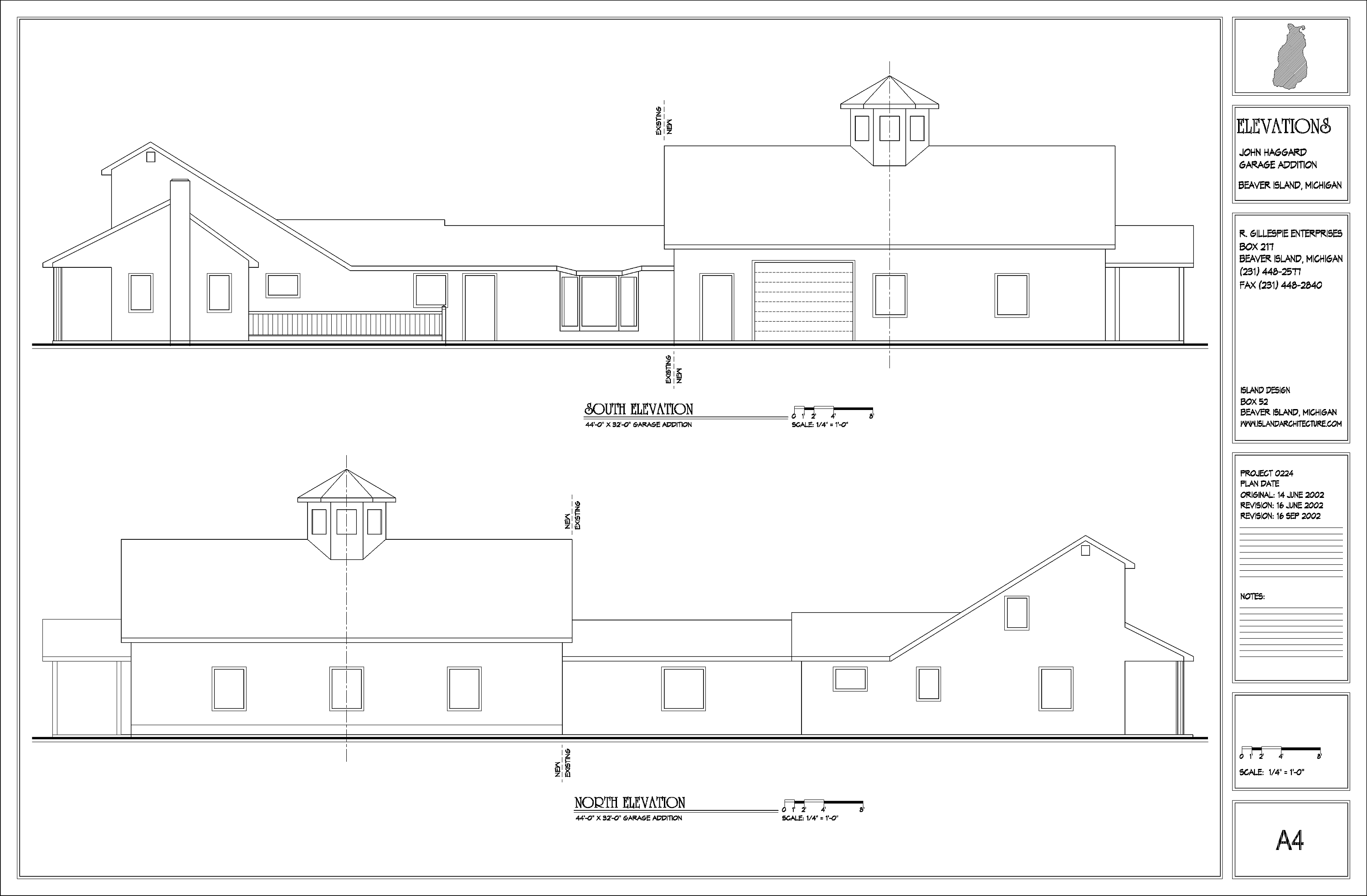

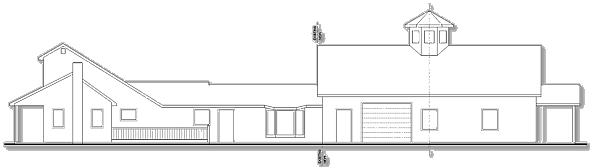

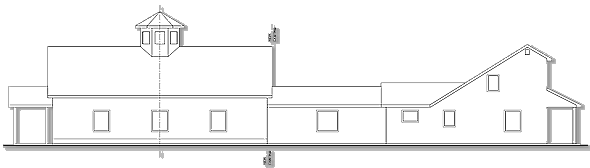

A4 - Elevations - Cupola Centered

Elevations DWF File
Elevations Image File

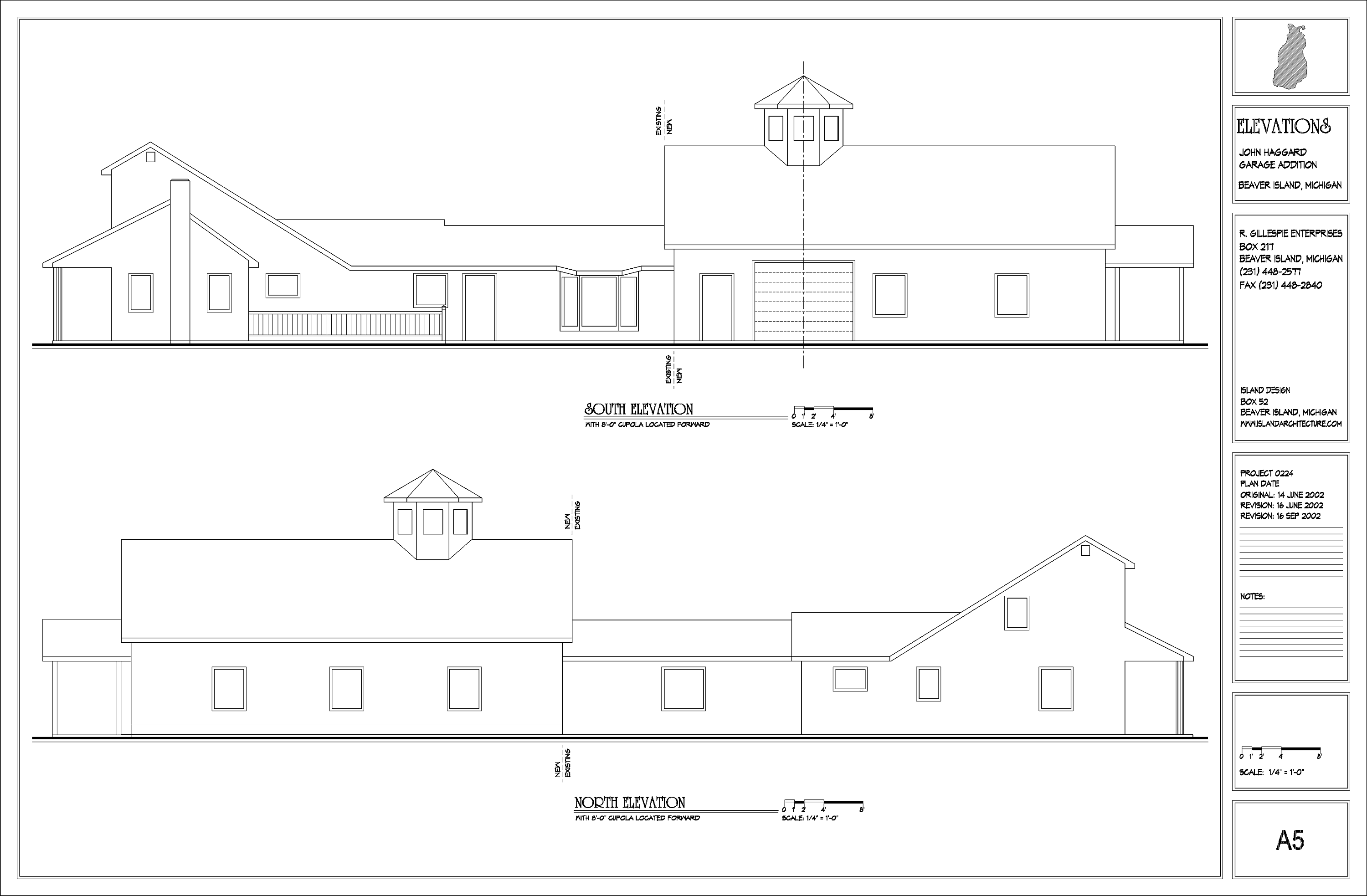

A5 - Elevations - Cupola Forward

  Elevations DWF File
Elevations GIF Image File



To view the DWF files, you need a DWF viewer like the free version of VoloView Express from http://www.autodesk.com/voloviewexpress

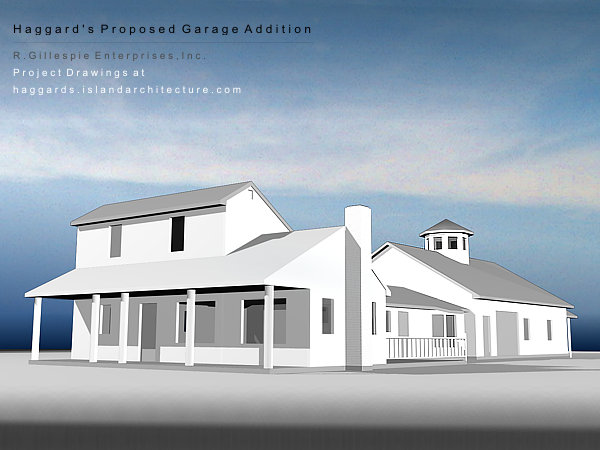

Current Model



Archive Drawings


Copyright © 2002 Island Design for R. Gillespie Enterprises, Inc.
Original 6-14-02 : Revision 6-16-02 : Drawings 9-17-02
